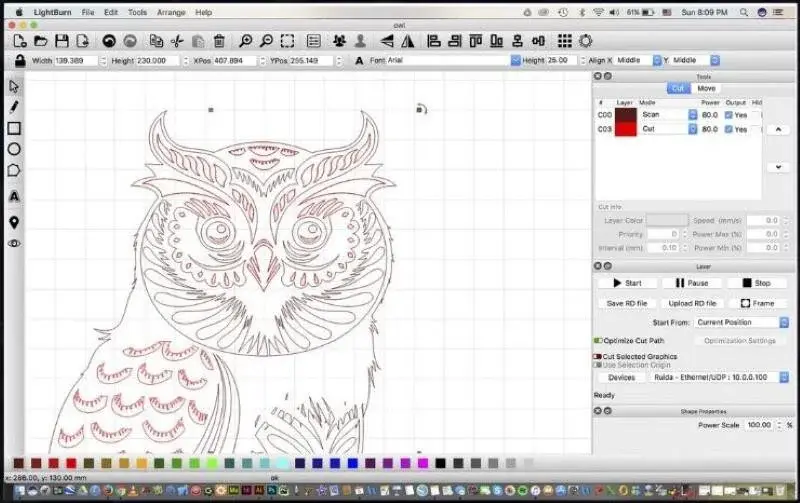

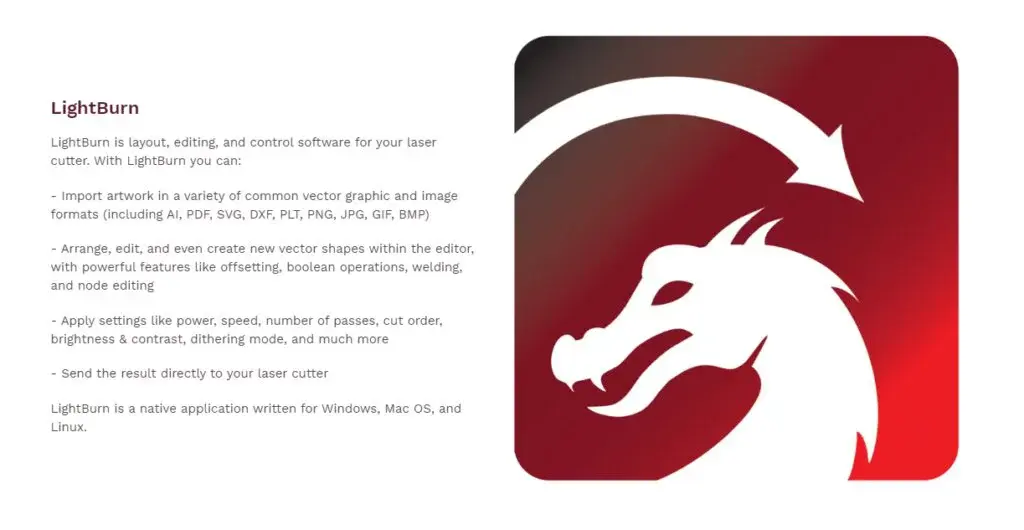

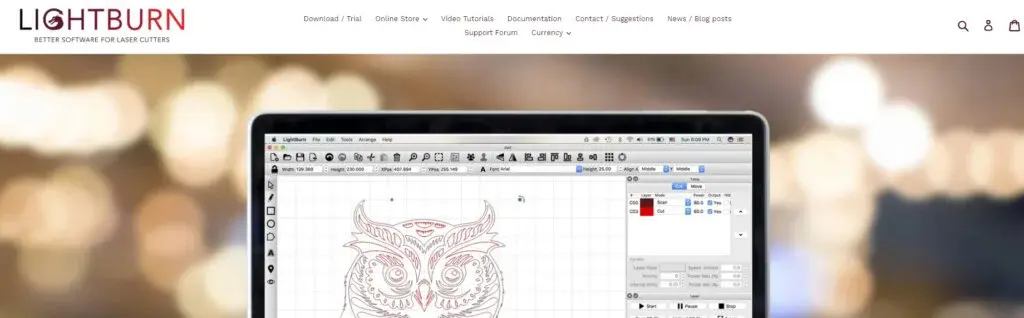

LightBurn is a robust layout and control tool for a laser cutter that offers several powerful features, such as the feature-rich editor that enables you to create, modify, and rearrange vector shapes and apply several functionalities like welding, offsetting, and node operations. It supports various formats for images that include GIF, PNG, JPG, and SVG. Besides images, it also allows you to add vector graphics in many file formats, including AI, PLT, DXF, and more.

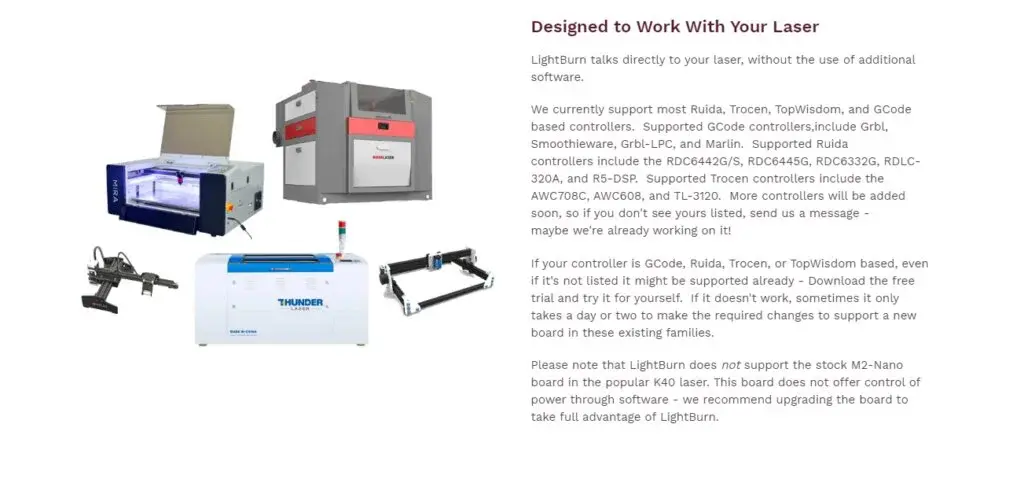

It provides multiple advanced configurations such as cut order, dithering mode, power, brightness controls, speed, and more. It can interact with laser without requiring any extra software and can work alongside GCode, Ruida, TopWisdom, and Trocen based controllers. You can customize a project and send the output straight to your laser cutter. Lastly, LightBurn can work on Linux, Microsoft Windows, and Mac OS.
Laser Draw is a lightweight solution that is preloaded with affordable Chinese cutters listed on Amazon and E-bay. The Laser Draw extension is open-source software available to the general public free of cost and is licensed under GPL Version 2.
It includes several helpful features, such as saving red and blue paths in vector forms, storing each file in zip file format, separating designs based on color, and ensuring that exported files retain attributes when accessed via Laser Draw. The extension can be easily installed by downloading a zip file from the website. The site also offers helpful documentation to assist the user with the installation process.
OpenBuilds CAM & Control are two major applications that enable users to connect, manipulate, and convert drawings for use with DragKnife, CNC, Plasma, or Laser devices. OpenBuilds Control simplifies connection and manipulation with the machines mentioned above and assists you in the execution of other tasks like performing GCODE Jobs, deciding & setting Zero coordinates, Jog the desired machine, and full-fledged configuration support for your Firmware.
OpenBuilds CAM is a robust application that can run in any modern web browser and converts Bitmap, SVG, and DXF Drawings to GCODE. It allows you to bring in Excellon, BMP, SVG, and several other files. You can quickly generate GCODE and transfer it to OpenBuilds Control without any difficulties. Lastly, you can quickly configure tool paths for Dragknives, Laser & Plasma cutting.
LaserWeb is a browser-based application that empowers users to connect and control their CNC and Laser machines. It is also a great solution to generate GCODE from PNG, DXF, JPG, Bitmap, and SVG files for use with CNC & lasers. LaserWeb has separate installers for Linux, Microsoft Windows, and Mac OSX.
Users can explore the extensive Documentation section to learn about Compatibility, Installation, Initial Configuration, Troubleshooting, and more. The platform also provides several videos to enable users to get acquainted with all the capabilities & features and comfortably apply them in their projects.
LaserGRBL for Microsoft Windows is an all-in-one, open-source GCode streamer for DIY Laser Engraver developed using pure C# code. It includes several high-profile capabilities, such as processing and streaming the Gcode path to Arduino. It also features a full-fledged conversion tool that enables users to engrave logos, images, and pictures.
In contrast to similar GUI applications, LaserGRBL is optimized to run smoothly with a laser cutter and engraver. To fully unleash its potential, the user must have an engraver that allows power modulation via S command instruction. LaserGRBL can be considered as a high-performance substitute to other tools like T2laser, picengrave, and benbox.
The software provides several in-demand features to help users fulfill their requirements. It can easily process GCOde along with job preview. It supports jogging for all Grbl versions and includes various color schemes that can synchronize with multiple safety glasses. LaserGRBL has an intuitive GUI that empowers users to perform Speed and Power overrides.
MeerK40t is a comprehensive, open-source Laser software for Stock-LIHUIYI laser board and can run seamlessly on multiple operating systems, including Raspberry Pi, Microsoft Windows, and Mac OSX. It’s coded in pure python and features a beautiful Graphical User Interface containing powerful features to help you with your tasks. Besides GUI, it has an advanced CLI that can be used to run any projects without requiring any assistance from the GUI.
MeerK40t offers several key features, such as support for Multi-Language, RasterWizard, simple Object Manipulation, high-resolution curve cutting, multiple drivers, PPI Power modulation, bulk import for images through drag-and-drop, and more.
DraftSight Premium is cost-effective software that includes 3D capabilities and powerful features to enable businesses to fulfill laser cutting, drafting, manufacturing, and modeling requirements. It is an all-in-one package trusted by highly paid professionals to transition from 2D drafting to 3D and synchronize with other software and services. The solution has all the features found in DraftSight Professional, along with top-notch 3D capabilities.
It also includes integrations with popular software and tools like SOLIDWORKS PDM and 3DEXPERIENCE to ensure smooth collaboration and administration of design files from modeling to prototype. Among many of the features offered by the software is 3D modeling, which allows you to build 3D shapes, and instantly convert 2D into 3D solids. The converted shapes are available for download in sat or stl formats, and you can also print or utilize them in 3D solutions.
Another characteristic is Dynamics Block support which enables you to import files from AutoCAD straight into Draftsight. It also lets you migrate outdated information with complete configurability for simple customization and management. Other features include 2D Constraints, 3D meshing, and Integration.
TurboCAD is a multilingual software application that includes 2D and 3D design capabilities to help designers, creators, manufactures, and engineers create stunning projects. It is optimized to run smoothly on Microsoft Windows and Mac OSX. The platform provides separate editions that are priced higher/lower depending on the features.
Windows users can invest in Pro Basic or Platinum editions that include powerful tools to help with drafting and 3D mechanical & architectural design. The similarity in these editions is that they allow the user to create TC Surface Objects, Surface Meshes, and ACIS Solids. The primary difference is that the basic edition provides fewer tools than the Platinum edition. Users that rely heavily on architectural & mechanical tasks should choose the Platinum edition as it has everything they need to accomplish their goals.
TurboCAD for MAC is developed using different tools & technologies, which prevents from running on the Windows Operating System. The software is available in many languages, including English, Polish, German, Japanese, French, Chinese, and more.
